The choice of the right rail profile determines the cost-effectiveness and safety of entire transportation networks. Whether high-speed or freight traffic, the loads are enormous. Bharat CDP Railsystems is your partner when it comes to safely integrating these profiles into the track system using high-precision components such as slide chair plates. In this guide, you will learn all about the anatomy, types and selection criteria of modern rail profiles.
How is a modern rail profile constructed?
The cross-section of a modern rail is geometrically precisely defined in order to carry maximum loads with minimum wear. Each wide base rail consists of three functional elements: the rail head, the rail web and the rail foot. The solid head provides the running surface for the wheels, while the lateral running edge provides precise track guidance. The vertical bar guarantees the necessary bending stiffness and transfers the forces to the wide base. This ensures a stable position on the threshold and prevents the profile from tilting under dynamic loads.
The precise geometry: head, bridge and foot in detail

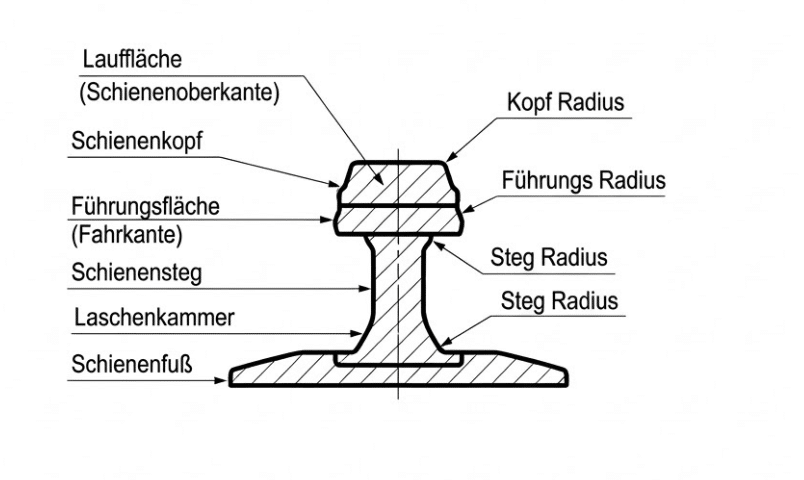

The cross-section (see figure Cross-section) of a rail profile is a masterpiece of statics in which every millimeter fulfils a function. As can be seen in the diagram, the geometry is divided into highly specialized functional areas:
- The rail head: It is shaped in such a way that it provides optimum contact conditions with the wheel over a long service life. The running surface forms the top edge of the rail, while the lateral guide surface (running edge) provides precise track guidance for the wheel flange.
- The rail web: It forms the vertical backbone. Its width must be dimensioned in such a way that it retains a high load-bearing capacity and resistance to cracking despite environmental influences. On the side at the transition to the head and foot is the fishplate chamber, which was historically used for mechanical connections and today serves as a space for modern fastening systems.
- The rail base: As a wide base, it distributes the enormous pressure evenly across the base. Only the perfect interaction of these zones guarantees a safe track and the dissipation of dynamic wheel forces.
Figure: Geometric structure of a UIC 60 standard rail profile, Source: Own illustration
What types of rails are there and how do they differ in use?
The choice of the right rail profile depends largely on the axle load, the planned speed and the environment. While stability is paramount in long-distance traffic, urban areas require flexibility in terms of integration into the road surface.
The Vignol splint (wide-foot splint)
The Vignol rail is the most commonly used form of rail worldwide today. It is characterized by its wide base, which is mounted directly onto the sleeper.
- Advantages: High strength, excellent load distribution and easy installation.
- Applications: Long-distance traffic, high-speed lines and narrow-gauge railroads.
- Material: High-strength steel, often welded as vignole rails in long rail systems.
The grooved rail
This special form of wide base rail is indispensable for streetcars. It has an integrated track channel (the groove) that provides track guidance while the rail is embedded flush in the asphalt or concrete. In Europe alone, 26 different grooved rail profiles have been defined to meet the requirements of urban infrastructure.
Crane rails for heavy loads
Standard profiles reach their limits in container terminals or industrial plants. Crane rails have an extremely massive rail web and a wide head to support the enormous point loads of gantry cranes. They are heavier and less flexible to install, but are irreplaceable for heavy industry.
A deeper insight into the entire track and rail construction process and the associated challenges shows how complex the coordination between material and laying is.
Standardization and material: Why LD steel sets the standard
The quality of a rail begins long before the first installation. Modern railroad rails are highly specialized high-tech products whose properties are strictly regulated in DIN EN 13674-1.
- LD process: Today, rails in Europe are almost exclusively rolled from LD steel. This process ensures an extremely high purity of the material, which minimizes the risk of breakage.
- Controlled cooling: After rolling, the profiles cool down evenly in the cooling bed. This prevents thermal stresses that could later lead to dangerous rail fractures.
- Precision in finishing: each rail is sawn to exact lengths. In the past, fishplate holes were standard – today, the seamlessly welded track dominates, which massively reduces wear on the rail vehicles.
The high quality of the raw material also enables a sustainable circular economy. Scrap material or old rails can be 100% recycled, which offers both economic and ecological benefits. Rail profiles are an integral part of what is understood by a railroad system. This comprises far more than just the tracks themselves and must be considered as a complete technical system.
S49 vs. UIC 60: The evolution of load classes
Larger railroad companies are standardizing their profiles according to load classes. This is an ongoing process of reinforcement in order to cope with the growing volume of traffic.
| Profile designation | Features & use | Meaning today |
| S 49 | Classic profile of the Deutsche Reichsbahn (approx. 49 kg/m). | Still often found on branch lines or in stations. |
| S 54 (50E6) | Reinforced profile for medium loads. | Standard for many regional networks. |
| UIC 60 (60E1) | Heavy profile (approx. 60 kg/m) for high-speed traffic. | Standard for all main arteries and new construction projects. |
The choice of profile is a strategic decision: a stronger profile such as UIC 60 offers significantly higher wear resistance and longer maintenance intervals, which reduces life cycle costs despite higher acquisition costs. These standards are essential, especially in the highly frequented German network. If you would like to know how the rail network in Germany works in detail, read this article.
System components: Where Bharat CDP Railsystems makes the difference
A rail profile is only as efficient as the components that support it. A distinction must be made here between standard fastening on open track and the highly complex requirements in turnouts.
The role of the ribbed slab in track construction
Ribbed plates are an indispensable element of the infrastructure in track construction. They serve as a base for the rail on the sleeper and ensure that the track gauge is maintained exactly. Ribbed plates distribute the forces of the rail vehicles over a large area and thus protect the superstructure from premature wear.
Slide chair plates: Our core competence for turnouts
When it comes to moving track sections, maximum precision is required. This is where Bharat CDP Railsystems is your specialized partner. Our slide chair plates form the foundation of every modern turnout.
- Function: They support the switch blades and enable them to move smoothly.
- Expertise: Die forging gives our plates extreme dimensional stability and surface quality.
- Advantage: This reduces the actuating forces of the point machines and minimizes the maintenance effort during operation.
This system is supplemented by our wheel guide plates, which ensure track guidance in the centerpiece areas, and tongue rolling devices, which enable lubricant-free and therefore environmentally friendly operation.
Rail lengths and finishing: precision all along the line
The performance of a rail network is also influenced by the rail lengths selected. Today, modern rolling mills produce standard lengths of 30, 60 or even 120 meters.
- Sawing and drilling: In the finishing stage, the profiles are sawn to the customer’s exact specifications.
- Joining technology: Whereas in the past fishplate holes were drilled to join rails mechanically, today almost exclusively welded tracks are used. This eliminates the notorious “rail joint” and ensures a smooth running surface.
- Quality control: Each profile is subjected to a strict inspection for dimensional accuracy and surface defects before it is installed.
Precise finishing is the basic prerequisite for ensuring that the rail later interacts perfectly with the sliding chair plates and locking systems from Bharat CDP Railsystems.
Efficiency and RAMS: Why quality halves costs
The operation of railroads is subject to strict RAMS criteria (Reliability, Availability, Maintainability, Safety). An inferior rail profile or imprecise fastening inevitably leads to high follow-up costs.
- Cost efficiency: The reconditioning and reprofiling of rails is only around half the cost of a new rail.
- Service life: The use of high-strength steel grades and the combination with forged switch components from Bharat CDP Railsystems maximizes the service life of the rails in the track.
- Availability: Fewer maintenance intervals mean higher network availability – a decisive factor for modern rail companies and container terminals.
In our knowledge area you will find in-depth articles on how you can increase the reliability of your infrastructure with modern system solutions.
Conclusion: A coordinated system for the rail of tomorrow
Modern rail technology is far more than just steel on concrete. It is a highly complex interplay of standardized rail profiles (such as the Vignol rail), a sophisticated transfer of forces via ribbed plates and the highly specialized mechanics of sliding chair plates and switch locks.
Bharat CDP Railsystems stands for this interaction. As your partner, we supply the crucial components that transform a standard profile into a high-performance transportation system. It’s a long way from the initial design to the finished rail track. Find out more about how railroad construction works – from the initial planning to the final laying of the tracks.
Are you looking for specific solutions for your turnout infrastructure or would you like to find out more about our forged components?
Explore our entire portfolio at Bharat CDP Railsystems.
Frequently asked questions about railroad track profiles
To give you a quick overview, we have summarized the most important questions about the technology and history of rail profiles.
What parts does a rail profile consist of?
Rail profiles for rails usually consist of three main components: the horizontal rail foot at the bottom, a vertical rail web in the middle and the running head (rail head) at the top, which serves as a running surface. This structure enables optimum load distribution and stability.
What are the historical origins of today’s rail?
The development was a long process:
- Early forms: The first tracks were simple ruts, tree trunks laid out lengthwise or wooden planks.
- Iron rails: The first iron rails were thin metal strips that were nailed onto “street trees”.
- Milestone 1767: Richard Reynolds laid cast-iron plates on worn wooden planks – this is considered the birth of the iron rail.
- The age of steam: In 1804, the world’s first steam locomotive rolled along mine tracks in South Wales.
What is the difference between vignole rails and grooved rails?
The vignole rail became a common form in the second half of the 19th century (e.g. in Germany and North America). The grooved rail is a special form of vignole rail that is used in particular for streetcar tracks. While vignole rails offer greater stability, grooved rails can be installed in road-like surfaces. In Europe today, 26 grooved rail profiles and 7 construction profiles for turnouts have been defined.
Why are welded profiles almost exclusively used today?
Welded profiles are used almost exclusively in modern track construction. This offers two decisive advantages: a significantly longer service life for the infrastructure and a massively improved ride comfort for passengers, as there are no joints at the rail connections.
What is the significance of profiles such as S 49 and UIC 60?
- S 49: This profile was developed in the 1920s as a standard superstructure for the Deutsche Reichsbahn. It is still used on many lines today, but is only installed for less heavily used tracks.
- UIC 60 (60E1): This profile has been used as standard for heavy-duty lines since 1970 in order to cope with increasing loads and speeds.
What are conductor rails and crane rails?
- Conductor rails: These are used in electric railroads for lateral power supply. In contrast to running rails, they have neither a load-bearing nor a guiding function.
- Crane rails: These special profiles for crane runways have an extremely wide head and massive web. They are very heavy and expensive, but necessary for extreme wheelset loads.
What about sustainability and quality in rail construction?
Modern rails are prime examples of the circular economy. The high initial quality of the steel used enables direct recycling of the scrap material. In addition, the material quality has been continuously improved over time (e.g. with Bessemer or Martin steel), resulting in high-strength LD steels today.
Why is regular maintenance so important?
Regular maintenance helps to achieve the so-called RAMS (Reliability, Availability, Maintainability, Safety) targets. Quality control is a critical aspect to ensure that all components – from the rail to the slide chair plate – meet safety standards. Specialized online tools are now available to engineers for calculating cross-section values.
